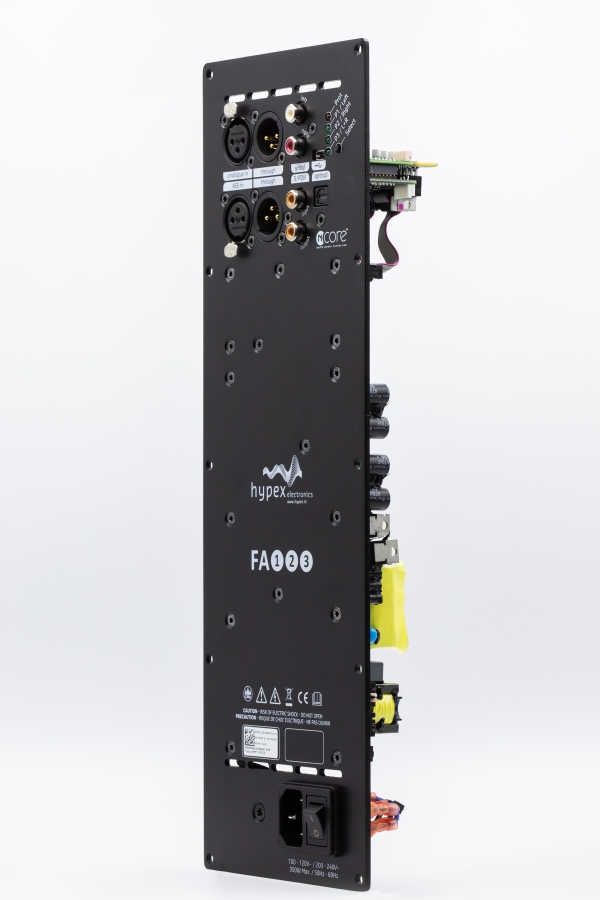

Hypex FusionAmp FA123
4 725,0 kr
Digitalt 3 way plate amp with 2 x 125 W + 1 x 100 W
2 in stock (can be backordered)
This FusionAmp can be the basis of e.g. a powerful two- or three-way monitor.
The FA123 has two 125 Wrms Ncore® amplifiers which can also be bridged to form one powerful 250 Wrms amplifier. Additionaly, a 100 Wrms Ncore® tweeter channel is added.
Dimensions: 360 * 120 x 55 mm
Weight: 955 gram (1615 gram incl. packing)
- Analogue balanced XLR in and through
- Analogue unbalanced RCA input
- Digital AES in and through
- Digital S/PDIF in and through
- Digital Optical TosLink input
- USB 2.0 configuration interface
- 15 biquads per amplifier
- Three selectable presets for filters
- Source selection
- Signal detect
- Auto shutdown
- BTL capable
- Clip protect
- Thermal protect
- Filter protection

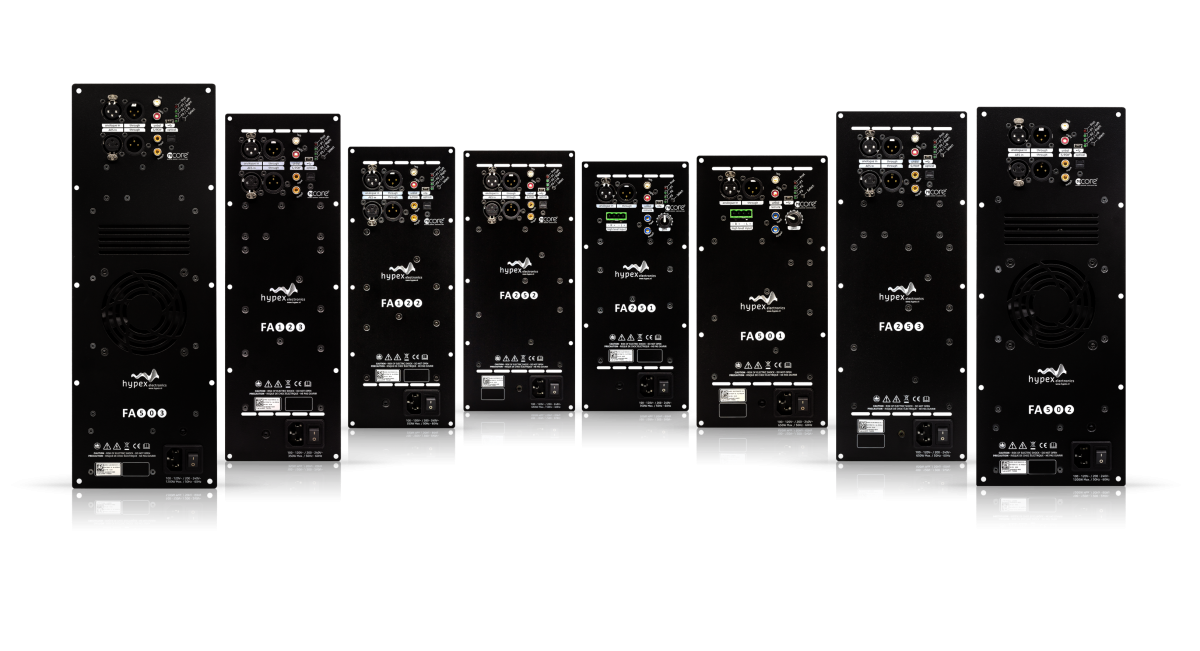

Meet the family
The Fusion Amp family consists of the following models:
FusionAmp One-Way models:
FusionAmp Two-Way models:
FusionAmp Three-Way models:
FA123, 2x125W + 100W Tweeter
FA253, 2x250W + 100W Tweeter
FA503, 2x500W + 100W Tweeter
What is included in the box:
- The FA123
- A printed copy of the user guide
- Speaker connection cables
What is not included in the box:
Basically anything else, so additionally order, if you need:
Fusion IR Receiver Kit
All modules can be extended with the Fusion IR Receiver Kit. This set contains a PCBA with IR receiver and bi-colour LED, and the necessary cable (125cm). This set is available for separate purchase
The Hypex Remote which can be used in combination with the Fusion IR Receiver Kit to control volume, source and put the system into standby.
Fusion Mounting Screws
The Fusion Amp must be mounted into the speaker cabinet with 8 or 10 screws. This set contains 10 self-tapping, black, Pozidriv screws, 3.9x20mm.
USB 2.0 Cable
USB Type A Plug – Mini USB Type B Plug,
IEC 60320 C13 – IEC Type F
Used in: Germany, Austria, the Netherlands and Spain among others.
IEC 60320 C13 – IEC Type G
Used in: UK, Ireland, Cyprus, Malta, Malaysia, Singapore, Hong Kong.
IEC 60320 C13 – IEC Type I
Used in: Australia, New Zealand, Papua New Guinea, Argentina, China.
IEC 60320 C13 – IEC Type B / NEMA 5-15P
Used in: North and Central America, Japan.
Hypex Filter Design
If you need a physical copy of Hypex Filter Design, you can order a CD containing HFD from our webshop. HFD is also available for free download.
|Power (4Ω)||2x 125 Wrms + 1x 100Wrms|
|Power (8Ω)||2x 75 Wrms + 1x 100Wrms|
|Channels||1 channel / 3 way|
|Mains voltage input||100-120 Vac / 200-240 Vac ±10%|
|Dimensions mm||360*120*55 mm|
