Visaton TIW 300 - 8 Ohm
Visaton TIW 300 - 8 Ohm - Image 2
Visaton TIW 300 - 8 Ohm - Image 3
,

Visaton TIW 300 – 8 Ohm

Original price was: 6 424,0 kr.Current price is: 6 103,0 kr. 6 103,0 kr

+ Free Shipping

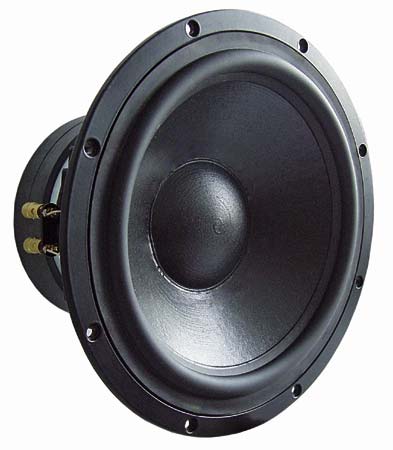

30 cm (12″) high-end woofer with a black cellulose diaphragm, large-format magnet arrangement and a massive aluminium diecast basket.

Availability: 4 in stock (can be backordered)

SKU: VIS-1364 Categories: , Tags: , , ,
Guaranteed Safe Checkout

30 cm (12″) high-end woofer with a black cellulose diaphragm, large-format magnet arrangement and a massive aluminium diecast basket. Thanks to the multiple venting of the voice coil (pole piece hole, holes in the pole piece plate, cutouts in the aluminium diecast cone to vent the spider from behind) losses and flow noise are minimised. The combination of the voice coil carrier made of capton and the large 65 mm voice coil allow extremely high volume levels.

Weight 7 kg

Specifications

Technical Specifications

Rated power 300 W
Maximum power 600 W
Nominal impedance Z 8 Ohm

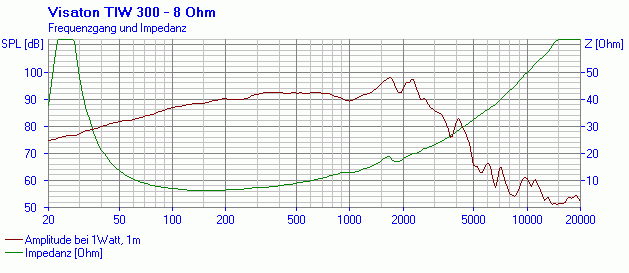

Frequency response fu–4000 Hz
(fu: Lower cut-off frequency depending on cabinet)
Mean sound pressure level 90 dB (1 W/1 m)
Excursion limit +/−16 mm
Resonance frequency fs 25 Hz
Magnetic induction 1.1 T
Magnetic flux 1800 µWb
Height of front pole-plate 8 mm
Voice coil diameter 65 mm
Height of winding 23 mm
Cutout diameter 288 mm
Net weight 7 kg
D.C. resistance Rdc 5.4 Ohm
Mechanical Q factor Qms 4.59
Electrical Q factor Qes 0.30
Total Q factor Qts 0.28
Equivalent volume Vas 160 l
Effective piston area Sd 510 cm²
Dynamically moved mass Mms 92 g
Force factor Bxl 16.5 Tm
Inductance of the voice coil L 1.7 mH
