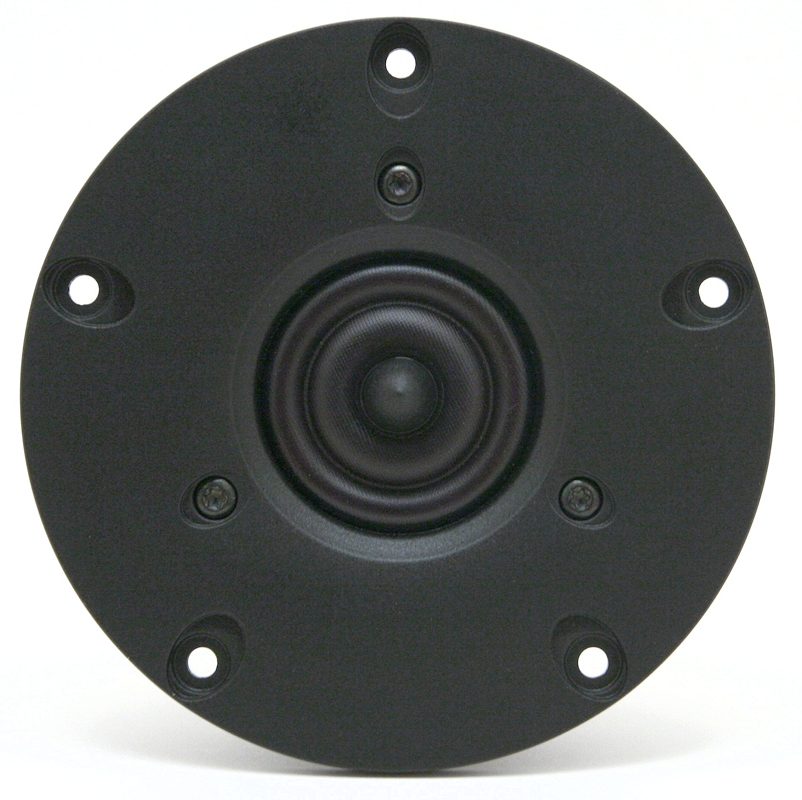

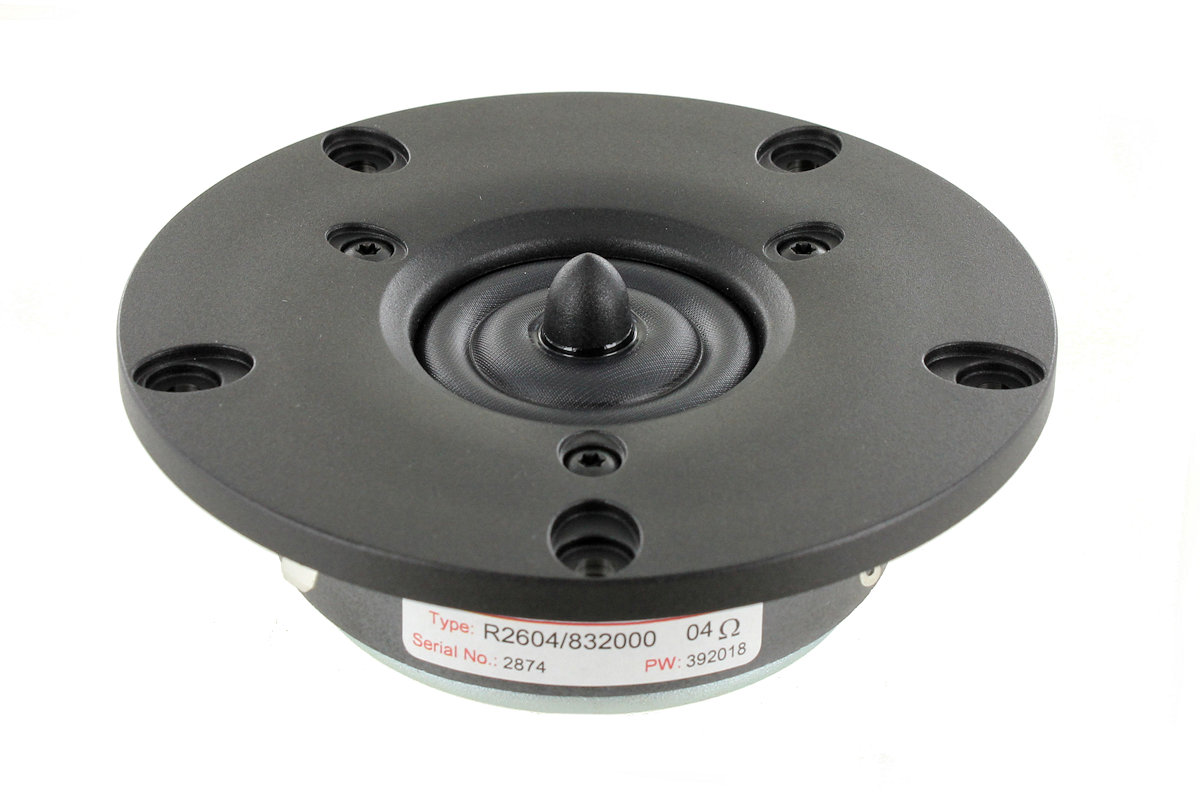

Scan-Speak Discovery R2604/832000

Tweeter with dual ring radiator diaphragm and bucking magnet.

The additional bucking magnet is mounted on the back of the motor system and used to achieve semi magnetic shielding and higher magnetic flux density in the air gap of of Scan-Speak R2604/833000.

The key feature of Scan-Speak R2604/833000 are also a very low resonance frequency, as well as frequency range, extended to above 40 kHz.

• Nominal impedance [Zn]: 4 Ω
• Resonance frequency [fs]: 440 Hz
• Sensitivity [2.83 V⁄1m]: 92 dB
• Power [P]: 100 W (RMS)

Note: Danish made Scan-Speak R2604/833000 is the modern version of well-known VIFA XT25BG60-04 tweeter.
